Whether you're a sound engineer, musician, or avid music lover, understanding the art of compression and its ratio is essential for achieving professional-grade sound.
The ratio parameter is the secret ingredient that can make your recordings shine and come alive.
Get ready to dive into the world of dynamic control and learn how to harness its power to take your sound to new heights.
Audio Compressor Ratio Explained
Image Credits: www.masteringthemix.com
When you apply compression to a sound signal, the compressor ratio determines how much the volume is reduced when it exceeds a certain level called the threshold.
For example, a compression ratio of 4:1 means that for every 4 decibels the audio goes above the threshold, it will be squeezed down to 1 decibel.
This helps make the loud parts more controlled and brings up the quieter details, resulting in a more balanced and polished sound.
The lower the ratio, the less the reduction in volume, and vice versa.
A low ratio (1.5:1 or 3:1) is used for light compression, which results in a subtle reduction in the dynamic range of an audio signal.
It is commonly used for tonal compression, ensuring that no sound exceeds a certain level or causes distortion.
On the other hand, a high compression ratio (4:1 or more) is used for heavy compression, which results in a significant reduction in the dynamic range.
It is commonly used for controlling the overall volume level of an audio recording, reducing the difference between quiet and loud parts.
A low ratio setting will result in a natural and transparent sound, while a higher ratio will result in a more compressed and controlled sound.
The correct ratio depends on the type of audio recording and the desired effect.
For example, pop music and hip-hop often benefit from high compression ratios, while classical, jazz, and acoustic music often benefit from low compression ratios.
Why it Matters
By understanding and utilizing ratio effectively, you can shape the overall sound and prevent inconsistencies that may distract the listener.
Imagine you have a recording with parts that are too loud and others that are too soft.
Ratio helps you bridge this gap by reducing the volume of the louder parts while preserving the quieter details.
It's like having a magic volume adjuster that keeps everything in check, making your tracks sound polished.
How to Calculate an Audio Compressor Ratio
Here is a simple method to calculate the compression ratio:
- Determine the threshold level: This is the level at which the audio compressor will begin to reduce the volume of the signal.
- Measure the input and output levels: measure the level of the audio signal before and after it passes through the compressor.

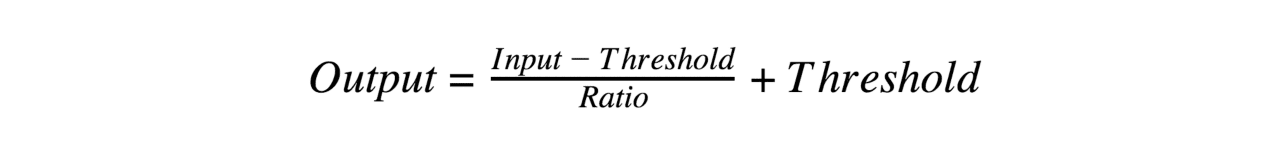

- Calculate the ratio: Divide the difference between the input level and the threshold level by the difference between the output level and the threshold level. This will give you the compression ratio.
For example, if the threshold level is set at -10 dB, and the input level is -6 dB, and the output level is -8 dB, the calculation would be (-6 dB - (-10 dB)) / (-8 dB - (-10 dB)) = 4:1.
In this example, the ratio would be 4:1, meaning that for every 4 dB that the input signal exceeds the threshold level, the output will be 1 dB above the threshold.
Calculating the ratio is a simple process that requires you to determine the threshold level, measure the input and output levels, and divide the difference between the input level and the threshold level by the difference between the output level and the threshold level.
How Certain Ratio Settings Affect a Signal:
1:1 - No matter how high the threshold level is, both input and output levels remain the same. As a result, no compression will be applied.
1.5:1 - Preserves the natural sound's peaks and valleys with a gentle, transparent compression.
2:1 - It allows the dynamics to be controlled smoothly without affecting the tone or punch of the track.
3:1 - With this ratio setting, compression is moderate but more aggressively controlled. A good amount of control is applied while maintaining natural dynamics.
4:1 - The signal is compressed at a medium ratio, which allows for better control. Punch, loudness, and tone will differ slightly.
10:1 - In addition to reducing dynamic range, it also reduces the punch, clarity, and presence of a signal.
20:1 to Infinity:1 - When you start applying this amount of ratio, the compressor effectively prevents the signal from crossing the threshold.
Practical Examples
Now that we've covered the essentials of audio compressor ratio, let's explore some practical examples to see how it works in different scenarios.
These examples will help you grasp the concept better and apply it to your own audio projects.
1: Vocal Recording
Suppose you have recorded a dynamic vocal performance where the singer's volume varies significantly.
To ensure a consistent and controlled vocal track, set the threshold just above the average level of the performance.
Start with a moderate compression ratio, such as 2:1 or 3:1, to gently tame the louder peaks.
Adjust the attack and release times to maintain the natural transients of the vocal while smoothing out any sudden jumps in volume.
Fine-tune the compression by adjusting the makeup gain to bring the vocal forward in the mix.
2: Drum Bus Compression
When processing drum tracks, the compression ratio can add cohesion and impact to the overall drum sound.
Begin by setting a threshold that captures the drum hits consistently.
Use a higher compression ratio, like 4:1 or 6:1, to tighten the drum sound and control excessive transients.
Experiment with different attack and release times to find the sweet spot that enhances the desired punch and sustain of the drums.
3: Bass Guitar in a Mix
A well-compressed bass guitar can add depth and definition to a mix.
Start by setting a threshold that affects the majority of the bass performance, avoiding unnecessary compression on low-level noise.
For a solid foundation, try a moderate compression ratio of around 3:1 or 4:1.
Adjust the attack time to let the initial attack of the bass come through, maintaining its punchiness.
Experiment with release times to find a setting that allows the notes to sustain naturally.
4: Acoustic Guitar Fingerpicking
When working with an acoustic guitar recording featuring intricate fingerpicking, the ratio can help even out the dynamics and bring out the nuances.
Start by setting the threshold to capture the majority of the fingerpicking passages while avoiding excessive compression during pauses or low-level sections.
Consider using a gentle compression ratio, such as 2:1 or 3:1, to maintain the natural dynamics and transient details of the performance.
Begin with shorter attack times to preserve the initial attack of each note, and adjust the release time to allow the sustain of the guitar to breathe.
5: Background Vocals in a Pop Song
Background vocals play a crucial role in enhancing the depth and harmonies of a pop song.
To ensure clarity and blend in the mix, set the threshold to capture the majority of the background vocal phrases.
Use a moderate compression ratio, like 3:1 or 4:1 to control any dynamic inconsistencies.
Adjust the attack time to retain the natural transients of the vocals, allowing them to cut through the mix without sounding overly compressed.
Use the release parameter to find a setting that enhances the sustain and blending of the background vocals.
FAQ:
What is the difference between 2:1 and 4:1 compression?
The main difference between 2:1 and 4:1 compression is how much control they apply on the sound.
A compression ratio of 2:1 provides a relatively gentle and subtle compression effect, allowing more dynamic range to remain in the audio.
On the other hand, a 4:1 compression ratio is more pronounced.
This higher ratio results in a more noticeable volume reduction and tighter control over the dynamic range.
The choice between 2:1 and 4:1 compression depends on the desired effect and the characteristics of the audio material being processed.
What Exactly is 6:1 Compression?
In a 6:1 compression ratio setting, for every 6 dB that the input signal exceeds the set threshold level, the output will be only 1 dB above the threshold.
This means that the output signal will be reduced by a factor of 6 compared to the input signal, creating a significant reduction in the dynamic range of the audio.
6:1 compression is similar to 4:1 compression in that it is used for heavy compression and is often used to control the overall volume level of an audio recording, reducing the difference between quiet and loud parts.
This can be useful in musical genres such as pop and hip-hop, where a more compressed and controlled sound is desired.
However, it is important to be mindful of the amount of compression used, as excessive compression can result in a loss of musicality, character, and energy in the audio.
In general, the ratio should be adjusted based on the specific requirements of the audio recording and the desired sound.
It is important to experiment with different ratio settings to get the best results.
What is the best compression ratio for mastering?
In general, mastering compression ratios tend to be moderate, typically ranging from 2:1 to 4:1.
This allows for a gentle and transparent compression effect that maintains the dynamics of the music while providing subtle control.
The specific ratio chosen will depend on the characteristics of the audio material, such as genre, instrumentation, and dynamic range.
It's important to consider the overall sonic balance and the intended artistic vision.
Ultimately, it's a subjective decision that should be made based on careful listening and the desired outcome for the final mastered track.
Is it better to have a higher compression ratio?
Whether a higher compression ratio is better or not depends on the desired effect and the context of the audio.
Higher compression ratios, such as 6:1 or 8:1 can be effective in situations where you want to heavily shape the sound.
However, it's important to use higher ratios judiciously, as excessive compression can result in an unnatural or overly compressed sound.
It's always recommended to listen carefully and strike a balance that enhances the audio while preserving its natural dynamics and musicality.
Understanding how the compression ratio works and its impact on audio recordings will allow you to make informed decisions when adjusting the compressor in your audio productions.
