You’ve loaded up an 1176 because every engineer you admire swears by it. Then you look at the front panel and nothing makes sense.
There is no threshold knob. The ratio is four push buttons. The attack and release are numbered backwards, so the fast setting is where you expect the slow one to be.
You end up turning knobs at random and hoping.
The 1176 is not hard to use. It is just laid out differently from every other compressor you have touched.
Once you understand its three quirks, it becomes one of the fastest, most musical compressors there is.
This post explains what the 1176 is best for, how its controls actually work, and the settings to start from on vocals, bass, and drums.
TL;DR
- The 1176 is a fast FET compressor known for punch, attitude, and adding pleasing harmonic color.
- Input sets the threshold (turn it up for more compression). Output is make-up gain.
- Attack and release are reversed: 1 is the slowest, 7 is the fastest. Counterintuitive, but consistent.
- Ratio is four buttons: 4:1 and 8:1 for everyday work, 12:1 and 20:1 for limiting, and “All-Buttons” mode for an aggressive, colored effect.
Keep reading to get starting settings for each source, how All-Buttons mode works, and how to use the 1176 for parallel compression.
What the 1176 Is Best For

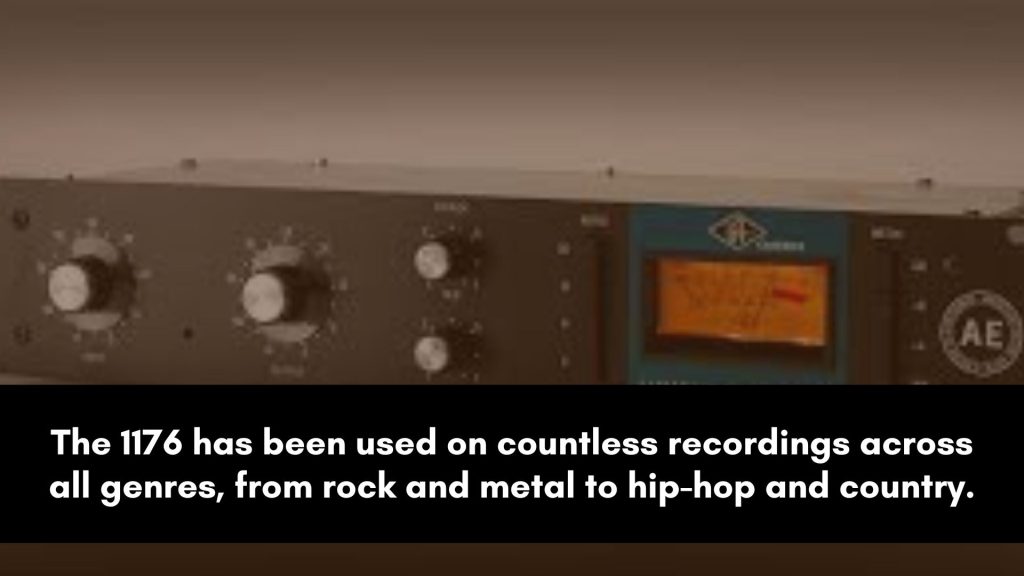

The 1176 first appeared in 1967 and has been on hit records ever since.
It is a FET compressor, meaning it uses a field-effect transistor for gain reduction.
That circuit gives it two defining traits: it is extremely fast, and it adds a pleasing harmonic grit as you push it.
Those traits make it the go-to for anything that needs energy and presence. It is a classic on lead vocals, where it adds forward attitude and consistency.
It shines on snare and room mics, where its speed snaps transients into focus. It is a favorite on bass guitar and on drum bus duty when you want the compression to be felt.
It is less suited to fully transparent, invisible level control. If you want compression nobody can hear, an optical or VCA compressor is usually the better pick.
Reach for the 1176 when you want the compressor to add character, not hide.
How the Controls Are Different
Almost every frustration with the 1176 comes from expecting it to behave like a normal compressor. It does not.
Three controls work differently, and once you internalize them, the unit becomes simple.
There is no threshold knob.
The 1176 has a fixed internal threshold. You control how much compression you get with the Input knob instead.
Turning Input up drives more signal past the fixed threshold, which gives you more gain reduction.
So on an 1176, “turn up the Input” means the same thing as “turn down the threshold” on any other compressor.
Attack and release run backwards.
On the attack and release dials, the number 1 is the slowest setting and 7 is the fastest. This trips up everyone at first.
Worth knowing: even the slowest attack on an 1176 is fast by normal compressor standards, around 0.8 milliseconds, and the fastest is down in the microseconds.
The 1176 is a fast compressor at every setting.
Ratio is a set of buttons. Instead of a sweepable knob, you get four fixed ratios: 4:1, 8:1, 12:1, and 20:1.
The higher ratios behave like limiting.
The Output knob is simply make-up gain, used to bring the level back up after the Input knob has driven the compression.
Want to know how hard to drive the Input before you start? Drop your WAV or MP3 into the Compression Analyzer.
1176 Settings Cheat Sheet
These are starting points, not destinations.
Set the ratio button, dial the Input until the gain reduction meter shows the target, set attack and release, and then use Output to match the level.
Adjust by ear from there.
| Source | Ratio | Attack | Release | Gain reduction |
|---|---|---|---|---|
| Lead vocal | 4:1 | 4–5 | 5–7 | 3–6 dB |
| Aggressive / rap vocal | 8:1 | 5–6 | 6–7 | 5–8 dB |
| Bass guitar | 4:1 | 3–4 | 5–6 | 4–7 dB |
| Snare | 4:1 | 2–3 | 6–7 | 3–6 dB |
| Drum bus (parallel) | 8:1 or All | 4–6 | 7 | 8–12 dB |
Notice the slower attack values (a lower number) on vocals and bass.
Letting a little transient through before the compressor clamps keeps the source punchy.
A faster attack (a higher number) on the snare tightens the hit hard, which is often exactly what a snare wants.
All-Buttons Mode Explained
There is a famous trick on the 1176 where you push in all four ratio buttons at once.
It is known as All-Buttons mode, the “British mode,” or the “nuke” setting, and it is one of the reasons the unit is legendary.
With every button engaged, the ratio becomes a strange, unstable curve somewhere around 12:1 to 20:1, and the attack and release behave erratically.
The result is heavy, distorted, aggressive compression with a lot of harmonic color. It is not subtle and it is not transparent. It is an effect.
All-Buttons mode is famous on room mics, drum busses, and attitude-heavy vocals, almost always blended in with parallel compression rather than used on its own.
Try it when you want a track to sound exciting and a little dangerous. Skip it when you want clean control.
Try it on anything: a vocal, a snare, a drum bus. Launch the Compression Analyzer → It takes about 3 seconds per file and tells you how much gain reduction your source actually needs.
Using the 1176 for Parallel Compression
The 1176 is one of the best tools for parallel compression, where you blend a heavily compressed copy of a track underneath the dry original.
This is how engineers get the unit’s exciting character without crushing the source.
Send the track to an aux channel and put the 1176 on that aux. Compress it hard, an 8:1 ratio or All-Buttons mode, pulling 8–12 dB or more of gain reduction.
Then blend that squashed copy in underneath the clean track until you hear the punch and density arrive.
The dry signal keeps the transients and life, the compressed signal adds body and attitude.
This works beautifully on drums, room mics, and vocals.
Many modern 1176 plugins include a built-in Mix or blend knob, which does the same job inside a single instance with no aux routing required.
3 Common Mistakes to Avoid
These three errors trip up nearly everyone new to the 1176. Knowing them in advance saves you a session of confusion.
1. Forgetting the attack and release are reversed. If your compression sounds wrong, check that you have not set the attack to its slowest when you meant fastest. On the 1176, 7 is fast and 1 is slow.
2. Driving the Input too hard. Because Input controls both signal level and compression amount, it is easy to slam the unit. Watch the gain reduction meter and keep it sensible, usually 3–6 dB for everyday work, unless you are deliberately going for an effect.
3. Using All-Buttons mode on everything. It is a fun, exciting sound, but it is an effect, not a default. On its own, across a lead vocal, it usually sounds harsh. Blend it in parallel and use it with intent.
Ready to stop guessing? The Compression Analyzer will read your track’s dynamics and recommend the attack, release, and ratio that fit your actual source, not a generic preset.
Frequently Asked Questions
What is the 1176 compressor best for?
The 1176 is best for sources that need energy, punch, and character. It is a classic on lead vocals, snare, room mics, bass guitar, and drum bus compression.
Its fast FET circuit snaps transients into focus and adds pleasing harmonic color.
It is less suited to fully transparent, invisible level control, where an optical or VCA compressor usually works better.
Why does the 1176 have no threshold knob?
The 1176 has a fixed internal threshold by design.
Instead of a threshold knob, you use the Input knob to drive more or less signal past that fixed point.
Turning the Input up gives you more gain reduction, exactly the same result as lowering the threshold on a standard compressor.
The Output knob then sets your make-up gain.
Why are the 1176 attack and release backwards?
On the 1176, the number 1 is the slowest attack or release setting and 7 is the fastest, the opposite of how most compressors are labelled.
It is simply how the original hardware was designed.
Even the slowest attack is fast by normal standards, around 0.8 milliseconds, so the 1176 is a quick compressor at every setting.
What is All-Buttons mode on the 1176?
All-Buttons mode is a trick where you push in all four ratio buttons at once.
It creates an unstable, aggressive compression curve with heavy harmonic distortion and a lot of attitude.
It is an effect, not a default setting, and is famous on room mics, drum busses, and edgy vocals.
It is usually blended in with parallel compression rather than used on its own.
What ratio should I use on the 1176?
For most everyday compression, use the 4:1 button for gentle control or the 8:1 button for more dynamic sources that need a firmer hold.
The 12:1 and 20:1 buttons behave more like limiting and suit peak control or aggressive effects.
Start at 4:1 on vocals and bass, and move up only if the source needs more.
Is a hardware 1176 better than a plugin version?
For most producers the difference is small and not worth the cost gap.
Modern 1176 plugins model the circuit, the fast FET response, and the harmonic color very accurately, and many add useful extras like a parallel Mix knob.
A hardware unit has its appeal, but a good plugin version will get you the 1176 sound on any track in your mix.
The Bottom Line
The 1176 is not complicated once you accept that it plays by its own rules. Input is your threshold. Attack and release run 1 slow to 7 fast.
Ratio is four buttons, with All-Buttons mode as a wild card.
Master those three quirks and you have one of the fastest, most characterful compressors ever made.
And if you’d rather know your track’s dynamics before you start driving the Input, the Compression Analyzer gives you the reading and fitting settings in about 3 seconds.
For a fuller breakdown of the mechanics of compression itself, start with our complete audio compression guide.
If you want to go further on specific settings, these are worth your time:
Learn the quirks, watch the meter, and let your ears be the final judge, and you’ll nail compression faster.
